CH-LP15 Parallel beam sensor

Product intro：Product features: CH-LP15 steel parallel beam weighing sensor is a single point bearing structure, product structure is simple, easy to use.Suitable for platform scale, etc.

TEL:156-2185-0939

Product intro

Product name：CH-LP15 Parallel beam sensor

Product features：CH-LP15 steel parallel beam weighing sensor is a single point bearing structure, product structure is simple, easy to use.Suitable for platform scale, etc.

Range：1kN（100kg）、2kN（200kg）、3kN（300kg）、5kN（500kg）、7kN（700kg）

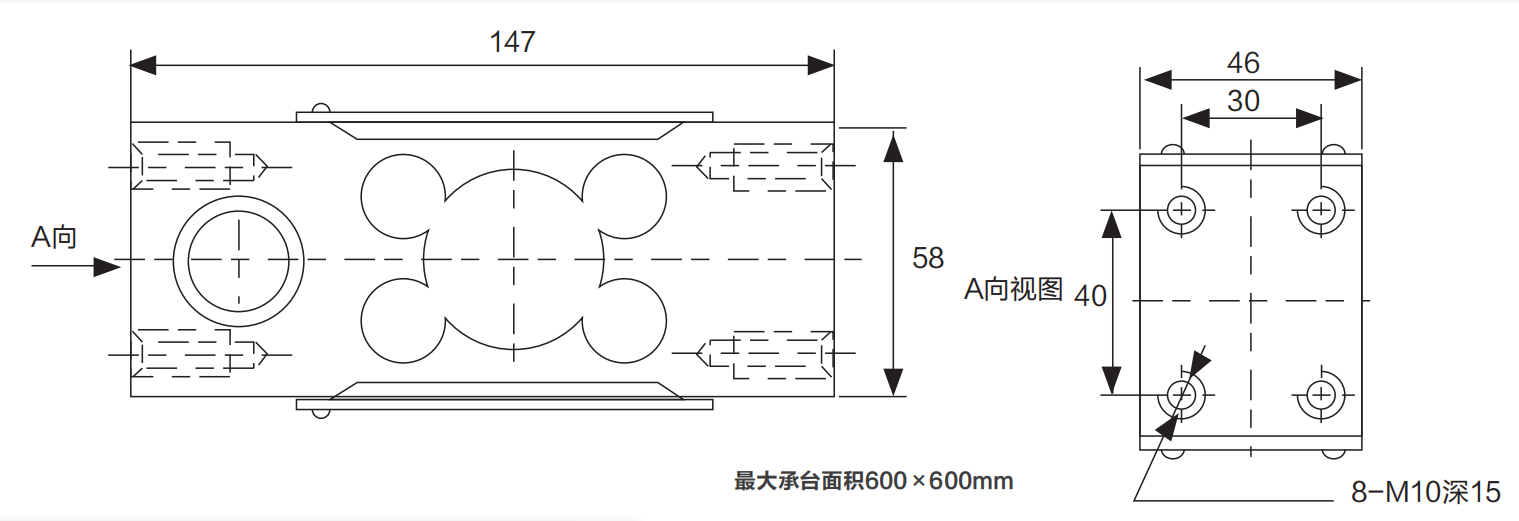

Dimensions：

Specifications：

Specifications
Rated Output	2.0mV/V±10%	Input impedance	410±15Ω
Non-linearity	±0.02%F.S	Output impedance	350±5Ω
Hysteresis	＜±0.02%F.S	Insulation resistance	≥5000MΩ
Repeatability	＜±0.02%F.S	Allow excitation voltage	5～15V/DC
Creep	＜±0.02%F.S/30min	Compensated temp. range	-10℃～+40℃
Temp. effect on zero	＜±0.02%/10℃	Operating temp. range	-30℃～+70℃
Temp. effect on span	＜±0.02%/10℃	Safe overload	150%F.S
Zero balance	＜±1%F.S	Ultimate overload	200%F.S
Connection	Excitation：+ Red - Black Shield： Thick Yellow Signal： + Green - White
