1、CH-PTSHT spoke weighing sensor
Product feature：The CH-PTSHt wheel-spoke weighing sensor is made of high-quality stainless steel, featuring high precision, high stability, low shape, easy installation and fast operation.Suitable for testing machine.
Range：5t，10t，20t

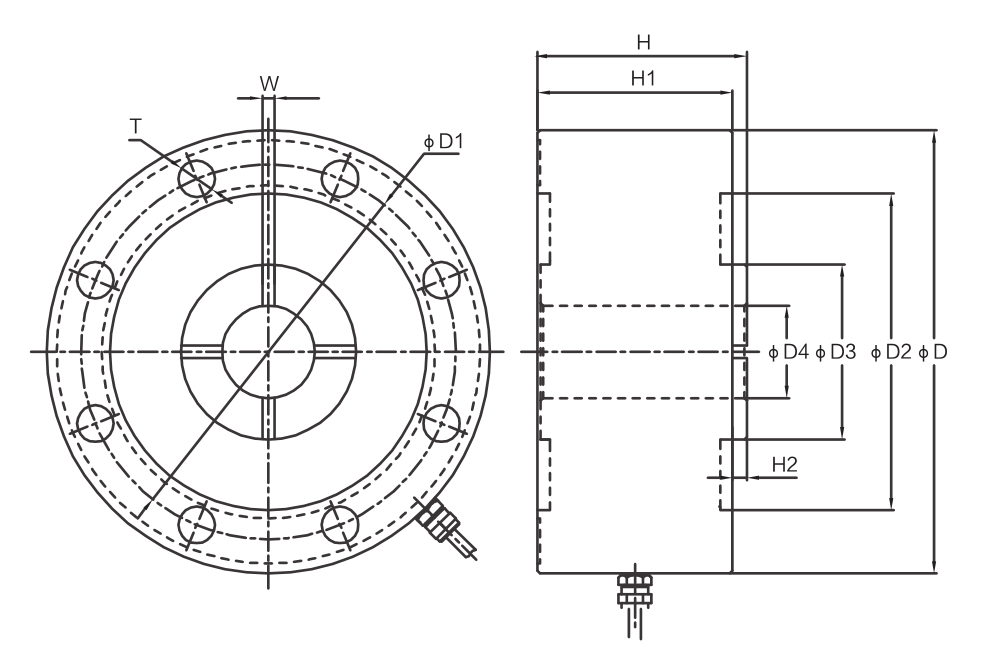

Dimensions：：
b
|
Range（kN） |
|
D |
D1 |
D2 |
D3 |
D4 |
H |
H1 |
H2 |
W |
T |
|
50-200 |
mm |
130 |
105 |
84 |
48 |
32 |
55 |
48 |
7 |
4x5.1 |
8xφ14 |
Specification：
|
Specifications |
|
|
|
|
Rated Output |
2.0mV/V±0.002 |
Input impedance |
385±10Ω |
|
Non-linearity |
±0.05%F.S |
Output impedance |
351±3Ω |
|
Hysteresis |
＜±0.05%F.S |
Insulation resistance |
≥5000MΩ |
|
Repeatability |
＜±0.05%F.S |
Allow excitation voltage |
5～15V/DC |
|
Creep |
＜±0.05%F.S/30min |
Compensated temp. range |
-10℃～+40℃ |
|
Temp. effect on zero |
＜±0.03%/10℃ |
Operating temp. range |
-30℃～+70℃ |
|
Temp. effect on output |
＜±0.03%/10℃ |
Safe overload |
150%F.S |
|
Zero balance |
＜±1%F.S |
Ultimate overload |
300%F.S |
|
Connection |
Excitation：+ Red - Black Shield： Thick Yellow Signal： + Green - White |
||
